Polcd 240X320 2.2 Inch Lcd Display ST7789V Small Tft Monitor 300 Brightness

Name: Polcd 240X320 22 Inch Lcd Display ST7789V Small Tft Monitor 300 Brightness
Brand: Polcd
Price: 1 USD

China Polcd 240X320 2.2 Inch Lcd Display ST7789V Small Tft Monitor 300 Brightness wholesale

Brand Name : Polcd

Model Number : P022H002

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 5-8 working days

Packaging Details : 20 cm * 30 cm * 40 cm

P/N : P022H002

Size (inch) : 2.2

Resolution : 240*320

Brightness (cd/m²) : 300

Interface : 4 Line SPI

Driver Ic : ST7789V

Contact Now

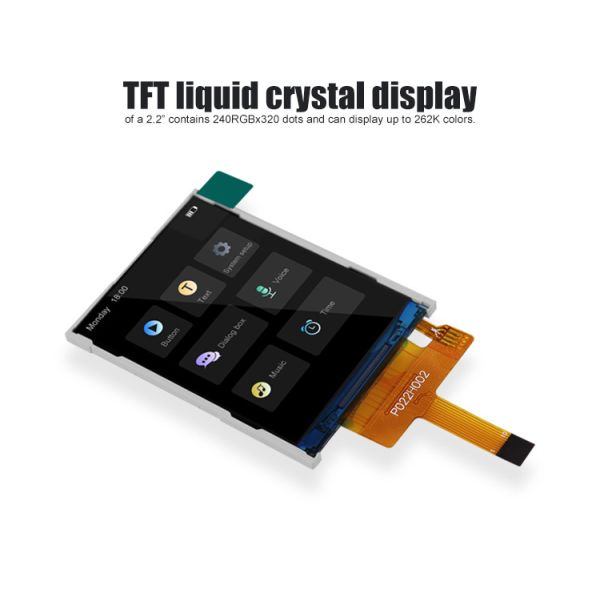

This Medical LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.2 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 300 nits under normal operating.

P/N	P022H002
Size(inch)	2.2
Resolution	240*320
Active Area(mm)	33.48*44.64
Pixel pitch(um)	139.5*139.5
Outline Dimension(mm)	40.1054.762.30
Pixel arrangement	RGB Vertical Stripe
Display Mode	Normally White
Viewing Angle	12 0'CLOCK
Display colors	262K
Brightness (cd/m²)	300
Contrast Ratio	500:1
Interface	4 Line SPI
Back-light	LED Side-light type
Driver Ic	ST7789V
Operation Temperature(°C)	-20~70
Storage Temperature(°C)	-30~80
Response time(ms)	8
Pin Number	10

This type of 4 Line SPI can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7789V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

Polcd 240X320 2.2 Inch Lcd Display ST7789V Small Tft Monitor 300 Brightness

Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.

Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.
